5 Ways to Save Matplotlib Figure

Matplotlib is a powerful data visualization library in Python that provides a comprehensive set of tools for creating high-quality 2D and 3D plots. One of the most common tasks when working with Matplotlib is saving figures for later use, whether it's for inclusion in a report, presentation, or publication. In this article, we'll explore five ways to save a Matplotlib figure, discussing the advantages and use cases for each method.

Method 1: Using the savefig Method

The most straightforward way to save a Matplotlib figure is by using the savefig method. This method allows you to specify the file name and format, as well as several options for customizing the output. For example, to save a figure as a PNG file, you can use the following code:

import matplotlib.pyplot as plt

# Create a sample plot
plt.plot([1, 2, 3])
plt.xlabel('X Axis')
plt.ylabel('Y Axis')
plt.title('Sample Plot')

# Save the figure as a PNG file
plt.savefig('sample_plot.png')

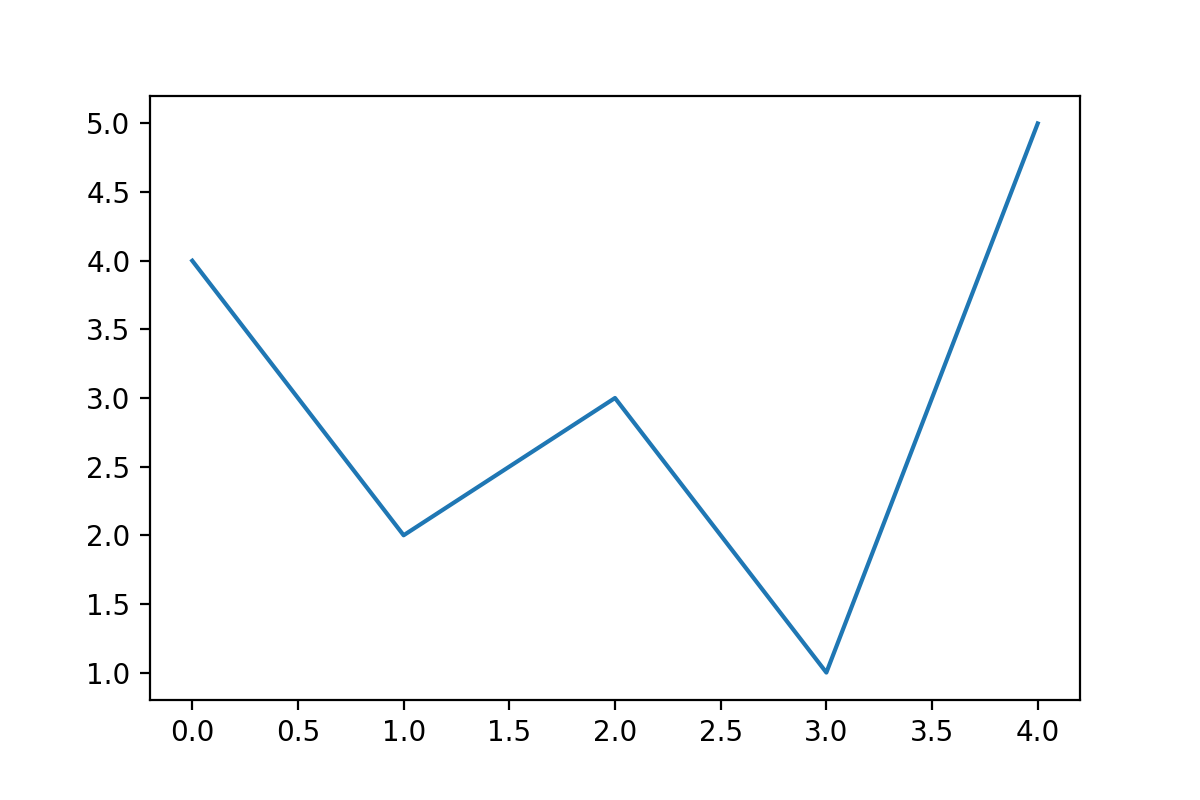

This code will save the figure as a PNG file named `sample_plot.png` in the current working directory. You can customize the file format by changing the extension in the file name. For instance, using `.pdf` instead of `.png` will save the figure as a PDF file.

Customizing the savefig Method

The savefig method accepts several optional parameters that allow you to customize the output. For example, you can use the dpi parameter to set the resolution of the output image, or the bbox_inches parameter to control the figure’s bounding box. Here’s an example:

import matplotlib.pyplot as plt

# Create a sample plot
plt.plot([1, 2, 3])
plt.xlabel('X Axis')
plt.ylabel('Y Axis')
plt.title('Sample Plot')

# Save the figure as a PNG file with custom DPI and bounding box
plt.savefig('sample_plot.png', dpi=300, bbox_inches='tight')

This code will save the figure as a PNG file with a resolution of 300 DPI and a tight bounding box, which means that the figure will be saved without any extra whitespace around it.

Method 2: Using the tight_layout Function

Another way to customize the figure’s layout before saving it is by using the tight_layout function. This function automatically adjusts the layout so that all elements fit within the figure area. Here’s an example:

import matplotlib.pyplot as plt

# Create a sample plot
plt.plot([1, 2, 3])
plt.xlabel('X Axis')
plt.ylabel('Y Axis')
plt.title('Sample Plot')

# Use tight_layout to adjust the figure's layout
plt.tight_layout()

# Save the figure as a PNG file
plt.savefig('sample_plot.png')

This code will save the figure with a tight layout, ensuring that all elements fit within the figure area.

Method 3: Using the figure Object’s Attributes

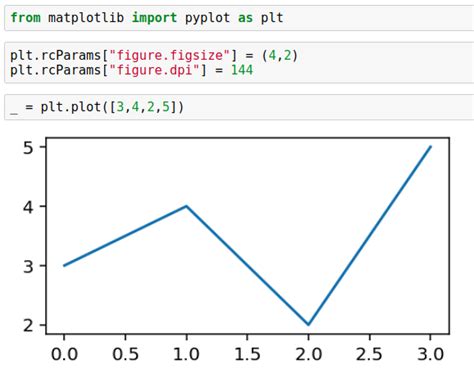

You can also customize the figure’s appearance before saving it by using the figure object’s attributes. For example, you can use the figsize attribute to set the figure’s size, or the dpi attribute to set the resolution. Here’s an example:

import matplotlib.pyplot as plt

# Create a sample plot
fig, ax = plt.subplots(figsize=(8, 6), dpi=300)
ax.plot([1, 2, 3])
ax.set_xlabel('X Axis')
ax.set_ylabel('Y Axis')
ax.set_title('Sample Plot')

# Save the figure as a PNG file
fig.savefig('sample_plot.png')

This code will save the figure with a size of 8x6 inches and a resolution of 300 DPI.

Method 4: Using the bbox_inches Parameter

The bbox_inches parameter allows you to control the figure’s bounding box when saving it. You can use this parameter to remove any extra whitespace around the figure. Here’s an example:

import matplotlib.pyplot as plt

# Create a sample plot
plt.plot([1, 2, 3])
plt.xlabel('X Axis')
plt.ylabel('Y Axis')
plt.title('Sample Plot')

# Save the figure as a PNG file with a tight bounding box
plt.savefig('sample_plot.png', bbox_inches='tight')

This code will save the figure with a tight bounding box, removing any extra whitespace around it.

Method 5: Using a Loop to Save Multiple Figures

If you need to save multiple figures, you can use a loop to iterate over the figures and save each one individually. Here’s an example:

import matplotlib.pyplot as plt

# Create a list of figures
figures = []
for i in range(5):
    fig, ax = plt.subplots()
    ax.plot([1, 2, 3])
    ax.set_xlabel('X Axis')
    ax.set_ylabel('Y Axis')
    ax.set_title(f'Sample Plot {i+1}')
    figures.append(fig)

# Save each figure as a PNG file
for i, fig in enumerate(figures):
    fig.savefig(f'sample_plot_{i+1}.png')

This code will create five figures and save each one as a PNG file with a unique name.

In conclusion, saving Matplotlib figures can be done in various ways, each with its own advantages and use cases. By understanding the different methods and options available, you can choose the best approach for your specific needs and ensure that your figures are saved in the desired format and quality.
